Door/Window Casing 6"
Door/Window Casing 6"

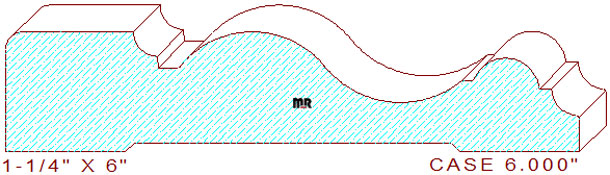

This charming 6" colonial door/window casing measures 6.000" wide by 1.250" thickness, enabling the pattern to be machined out of six-quarter lumber. The old world profile is composed of a 1-11/32" flat line segment with a 3/16" rounded outer edge on the top left, attached to a 1/4" cove with a 1/8" vertical drop in elevation and a 7/32" wide sunk fillet, merged with a graceful down-sloping two tangent radius cyma reversa in the center, joined to an 11/16" wide half circle flanked by two 1/8" horizontal segments and a 9/32" cove with a 3/64" eased edges on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 6.000
Depth of Cut: 1.063
Bottom Cutter Head
Width: 6.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
