Door/Window Casing 5-1/2" - 18

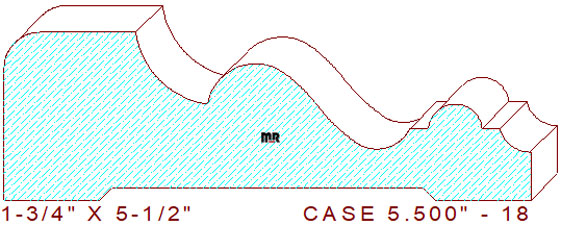

This eye-catching 5-1/2" - 18 door casing measures 5.500" wide by 1.750" thickness, authorizing the pattern to be machined out of eight-quarter lumber. The impressive profile is composed of a 1-3/8" broad flat line with a 3/8" rolled outer edge on the top left, connected to a deep 7/8" cove merged with a down-sloping s-shaped curvature, also known as a cyma reversa in the center, attached to a 9/16" wide half round bead flanked by 3/16" wide fillets with a 5/16" cavetto, leaving a 1/2" thickness dimension on the right side of the design.

Before beginning knife grinding procedures, please read our article on knife cutting circles to see if you can safely mill this pattern on your machinery, this pattern will not be able to be milled on specific moulder models.
