Door/Window Casing 5-3/8" - 1
Door/Window Casing 5-3/8" - 1

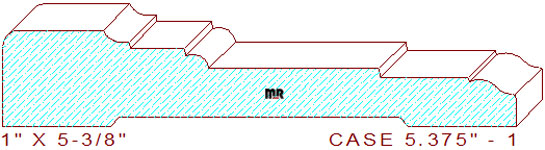

This lavish 5-3/8" - 1 door/window casing measures 5.375" wide by 1.000" thickness, requiring the pattern be machined out of five-quarter lumber. The visually appealing profile is composed of a 1-1/16" broad flat line with a 5/32" rounded outer edge on the top left, connected to a 7/32" wide congee with a 1/16" vertical step and a 9/16" flat line with a 5/64" drop in elevation, attached to a decorative quarter round bead and a 1-25/32" line segment with a 3/32" vertical step in the center, merged with a 15/16" broad flat line with a tiny beveled edge and a small ogee on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.375
Depth of Cut: 0.864
Bottom Cutter Head
Width: 5.375
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
