Door/Window Casing 5" - 38
Door/Window Casing 5" - 38

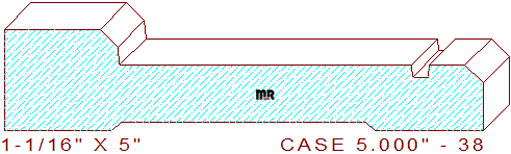

This contemporary 5" - 38 door/window casing measures 5.000" wide by 1.062" thickness, allowing the pattern to be machined out of five-quarter lumber. The fashionable profile is composed of a one-inch broad flat line with a 3/16" beveled edge on the top left. It's connected to a 3/16" drop in elevation and a 3-1/16" flat segment in the center, attached to a 3/16" wide by 1/8" deep dado and a 3/8" broad flat line with another 3/16" chamfer, leaving a 1/2" thickness dimension on the right side of the design. We offer many baseboards to compliment this pattern; here is one you may want to review and consider,
baseboard 7.000" - 66.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.000
Depth of Cut: 0.625
Bottom Cutter Head
Width: 5.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
