Door/Window Casing 5" - 33

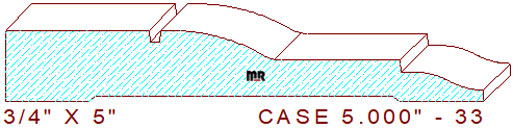

This attractive 5" - 33 door/window casing measures 5.000" wide by .750" thickness, enabling the detail to be cut from four-quarter lumber. The custom profile is composed of a 1-1/2" wide line segment on the left, attached to a 1/8" wide by 1/8" deep sunk fillet that transitions into a 1-31/32" convex arc tangent to a 3/8" concave semicircle in the center, merged with a 1-1/4" wide flat line with a 1/8" vertical step and a two tangent radius ogee leaving a 1/8" thickness dimension on the right side of the design. Try utilizing one of our many different fancy backband profiles on the outer edge of this pattern, create a stylish and unique door casing design for your beautiful home or office.
