Door/Window Casing 5" - 28
Door/Window Casing 5" - 28

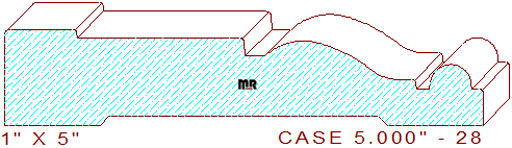

This lavish 5" - 28 door/window casing measures 5.000" wide by 1.000" thickness, enabling the detail to be milled from five-quarter lumber. The extravagant profile is composed of a 3/4" wide by 1/8" tall raised fillet with 1/16" eased edges on the top left, joined to a 1-3/4" broad flat line with a 3/16" vertical step and a 13/64" sunk fillet in the center, connected to a down-sloping three tangent radius cyma reversa with a 3/16" drop in elevation, attached to a 9/64" wide area connected to a 7/16" half circle and a 1/8" line segment with a 3/64" eased edge on the right side of the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.000
Depth of Cut: 0.819
Bottom Cutter Head
Width: 5.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
