Door/Window Casing 5" - 22

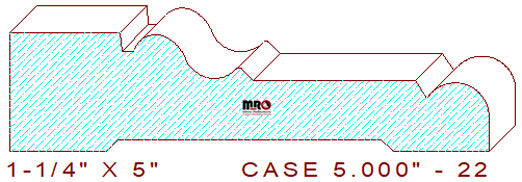

This distinguished 5" - 22 door/window casing measures 5.000" in width by 1.250" in thickness. The stunning profile comprises a 1-5/32" broad flat line with an intentional sharp corner for utilizing many of our lovely backband patterns. The horizontal area connects to a 1/8" wide by 3/16" deep sunken fillet. The line joins a three-tangent radius s-shaped curvature with an elevation-changing beveled edge in the center. The remaining portion retains a 1-11/16" flat area with a chamfered edge merged with a 41/64" half bead on the design's right side. The recommended rough wood rip size using six-quarter lumber is 5-1/4" wide.

Review our commentary on custom-made pressure shoes. This helpful step-by-step article will help you mill any profile to perfection every time. This is one more example of how we help you produce superior profiles that will influence even the toughest critics.

The up-to-date combined high-speed steel knives & template prices are listed below for quoting purposes.
