Door/Window Casing 5" - 21
Door/Window Casing 5" - 21

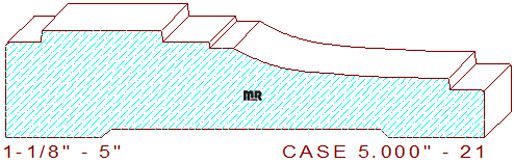

This creative 5" - 21 door/window casing measures 5.000" wide by 1.125" thickness, which should be able to be milled from five-quarter lumber. We oriented the profile on the moulder so the feed roller marks would be milled away from the top cutter head. The stylish profile comprises a 3/8" wide notched fillet connected to a 1-1/4" wide flat fillet that steps downward two times to a two-tangent radius creating a shallow cavetto with another 3/8" notched fillet on the thinner side of the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.000
Depth of Cut: 0.821
Bottom Cutter Head
Width: 5.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
