Door/Window Casing 5" - 20

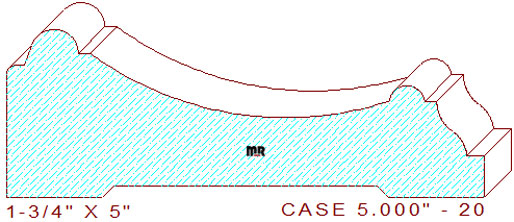

This designer 5" - 20 door/window casing measures 5.000" wide by 1.750" thickness, permitting the detail to be cut from eight quarter lumber. The elegant custom profile is composed of a 3/16" wide line segment with a 3/32" rounded edge on the left, attached to a thumbnail shaped semicircular arc merged with a 1/8" wide line, connected to a 3-15/32" radius scotia that joins with a 3/8" wide half round bead and a 1/8" wide line in the center, attached to a down-sloping two tangent radius cyma recta with a 3/16" wide line leaving a 7/16" thickness dimension on the right side of the design.

Before beginning knife grinding procedures, review our article on knife cutting circles. Determine if you can safely cut this pattern on your machinery; this profile might have knife swing issues on certain machinery models.

The up-to-date combined high-speed steel knives & template prices are listed below for quoting purposes.
