Door/Window Casing 4-3/4" - 12

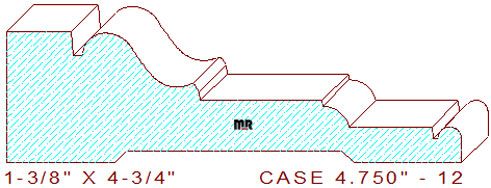

This distinct 4-3/4" - 12 door/window casing measures 4.750" width by 1.375" thickness, necessitating a 5" wide blank of six-quarter lumber for milling on an industrial moulder. The extravagant profile comprises an 11/16" wide by 1/4" tall raised area joined to a 3/32" horizontal recessed fillet on the top left. The line connects to a downsloping four tangent radius s-shaped curvature with a slight chamfer. A 3/32" vertical step attaches to a 1-9/32" flat line segment with a 1/16" drop in elevation in the center. The remaining section contains a 9/32" quarter round connected to a 7/8" broad fillet with a 1/8" deep 1/6" wide sunk fillet merged with a 1/4" half-circle on the design's right edge. We offer a matching plinth block for this detail you may want to review and consider, plinth block 5.000" - 2.
