Door/Window Casing 4-3/4" - 10
Door/Window Casing 4-3/4" - 10

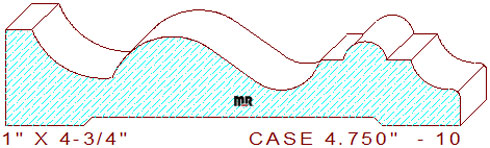

This lovely colonial-themed 4-3/4" - 10 door/window casing measures 4.750" width by 1.000" thickness, requiring a five-inch wide blank of five-quarter lumber for milling on an industrial moulder. The graceful profile contains a 9/32" broad fillet on the top left. The short line connects to a 51/64" cavetto merged with a free-flowing s-shaped curvature in the center. The remaining portion of the pattern consists of a 29/64" half-circle flanked by 1/4" wide fillets and a 13/32" cove with a 3/32" rolled edge on the design's right side.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$43.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$43.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$43.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.750
Depth of Cut: 0.870
Bottom Cutter Head
Width: 4.750
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
