Door/Window Casing 4-1/2" - 58

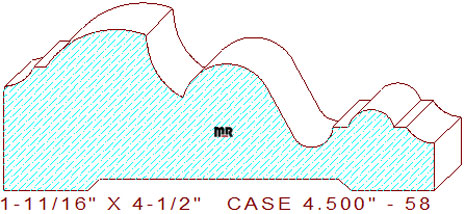

This stunningly bold 4-1/2" - 58 door casing measures 4.500" wide by 1.687" thickness permitting a 4-3/4" wide blank of eight-quarter lumber for milling on a commercial moulder. The sumptuous colonial profile contains an 11/32" cove, joined to a 1/8" broad fillet at a height dimension of 1-3/32" on the top left. The short flat line connects to a 57/64" convex arc, attached to a 23/32" concave semicircle, forming a beak-shape in the center. The remaining portion consists of a deep downsloping s-shaped curvature merged with a 1/4" radius bead flanked by small fillets; another 11/32" cavetto at a 1/2" thickness dimension is on the design's right side.

Before beginning knife grinding procedures, review our article on knife cutting circles. Determine if you can safely cut this pattern on your machinery; this profile might have knife swing issues on certain machinery models.

The up-to-date combined high-speed steel knives & template prices are listed below for quoting purposes.
