Door/Window Casing 4-1/2" - 54
Door/Window Casing 4-1/2" - 54

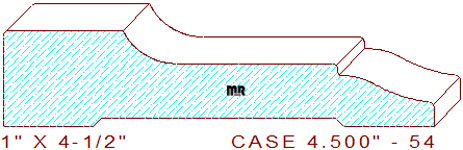

This delightful 4.500" - 54 door/window casing measures 4.500" wide by 1.000" thickness, permitting the pattern to be machined out of five-quarter lumber. The luxurious profile is comprised of a 1-1/4" broad flat line with a 1/16" rolled outer edge on the top left, connected to a 2-1/4" wide cong'e, derived from a 5/8" cavetto with a 1/8" vertical step in the center, merged with a one-inch wide ogee made up of a 21/32" convex arc tangent off of a 1-1/2" concave semicircle with a 1/16" eased edge on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.500
Depth of Cut: 0.968
Bottom Cutter Head
Width: 4.500
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
