Door/Window Casing 4-1/2" - 47
Door/Window Casing 4-1/2" - 47

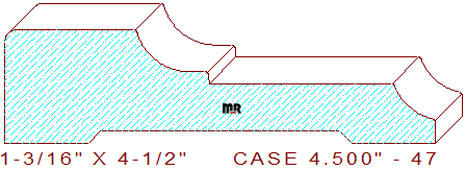

This double cove 4-1/2" - 47 door/window casing measures 4.500" wide by 1.187" thickness, enabling the detail to be milled out of six-quarter lumber. The concave profile is composed of a 1-3/8" broad straight line with a 1/8" rounded outer edge on the top left. It's connected to a 3/4" wide cong'e made from a 9/16" cove with a 1/8" vertical step in the center. It merges with a 1-15/16" flat segment and a 9/16" cove with a 3/64" eased edge, leaving a 1/4" thickness dimension on the right side of the design. We offer a beautiful matching baseboard detail for your review and consideration,
baseboard 8.625" - 20.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.500
Depth of Cut: 1.116
Bottom Cutter Head
Width: 4.500
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
