Door/Window Casing 4-1/2" - 22
Door/Window Casing 4-1/2" - 22

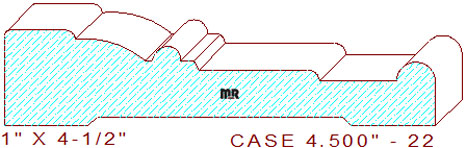

This ornate 4-1/2" - 22 door/window casing measures 4.500" wide by 1.000" thickness. The beautiful profile is comprised of a 3/4" broad horizontal line with double eased edges that transition into a 31/32" radius arc, connected to a 5/16" wide thumbnail shaped semicircle flanked by small fillets and a 3/32" step, joined to a 1-17/74" broad horizontal line with a 1/8" radius edge that transforms into a 13/16" wide sunk fillet and a 13/32" wide half circle on the thin side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.500
Depth of Cut: 0.691
Bottom Cutter Head
Width: 4.500
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
