Door/Window Casing 4-1/4" - 26

Door/Window Casing 4-1/4" - 26

Door/Window Casing 4-1/4" - 26

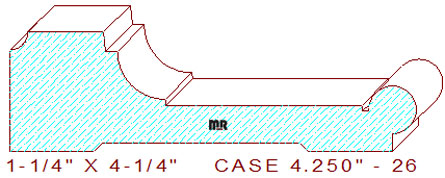

This pencil bead 4-1/4" - 26 door/window casing measures 4.250" wide by 1.250" thick. The classy profile is comprised of a 3/16" radius cove on the outer edge, connected to a 13/16" wide by 13/64" deep stepped fillet on the top left. It's joined to a 1/8" broad horizontal line attached to a 1/2" radius cove with a 1/16" tall vertical line linked to a 2-1/16" horizontal line with a 1/16" sunk fillet in the middle. It connects to a 1/4" radius three-quarter circle with a 3/16" tall vertical line on the thin side of the pattern. We have a few complementing profiles that you may want to review and consider for other rooms in the home, door/window casing 2.000" - 6, and crown mould 4.187" - 1.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.125
Depth of Cut: 0.250
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.250
Depth of Cut: 0.829
Bottom Cutter Head
Width: 4.250
Depth of Cut: 0.093

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$136.75
Not Needed
$313.00
$293.00
Total:
$742.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.25
Not Needed
$333.00
$313.00
Total:
$790.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.75
Not Needed
$353.00
$333.00
Total:
$837.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
