Door/Window Casing 4-1/8" - 4

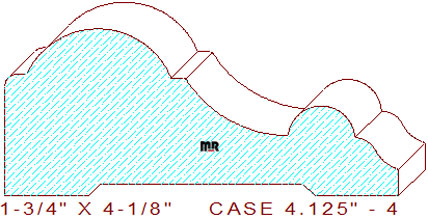

This beautiful 4-1/8" - 4 door/window casing measures 4.125" wide by 1.750" thickness, permitting the detail to be machined out of eight-quarter lumber. The hefty attractive profile is composed of a 7/32" broad line segment with a 1/8" rounded edge at a 1-9/32" thickness dimension on the top left, joined to a 1-33/64" wide semicircular arc and a 1/8" broad line, merged with a 1-17/64" radius cove in the center, attached to a 45/64" wide half round bead and a two tangent radius ogee with a 3/64" eased edge on the right side of the design.
