Door/Window Casing 4" - 62

Door/Window Casing 4" - 62

Door/Window Casing 4" - 62

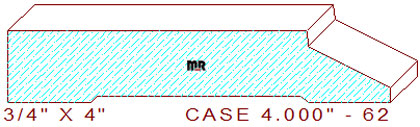

This chamfered edge 4" - 62 door/window casing measures 4.000" wide by .750" thickness. The simplistic profile is comprised of a 3-1/8" wide straight line with a 5/32" vertical step attached to a twenty-seven-degree beveled line leaving a 5/32" thickness dimension on the thin side of the design.

Try utilizing one of our many different embellishing backband profiles on the side edge of this pattern, create a stylish and unique casing design for your beautiful home or office, alter the search parameters to find the width backband that enhances your architectural style. We offer a few complementing baseboards for this pattern you might want to review and consider, base 5.500" - 16, baseboard 5.500" - 23 and baseboard 5.500" - 50.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.664
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$299.50
$280.50
Total:
$580.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$318.50
$299.50
Total:
$618.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$337.50
$318.50
Total:
$656.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
