Door/Window Casing 4" - 48
Door/Window Casing 4" - 48

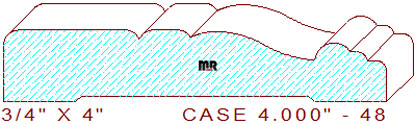

This designer 4" - 48 door/window casing measures 4.000" wide by .750" thickness, allowing the use of four-quarter lumber for milling on an industrial moulder. The gorgeous profile is comprised of a 1-13/32" wide raised fillet with 5/32" eased edges on the left, connected to a smaller 17/32" wide raised fillet with the same rounded edges merged with a shallow two tangent radius cyma reversa in the center, attached to a 3/8" wide semicircular convex arc with two cascading quarter rounded edges on the right side of the pattern. We offer a matching baseboard for this pattern you may want to review and consider,
basebaord 5.250" - 6.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.562
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
