Door/Window Casing 4" - 145
Door/Window Casing 4" - 145

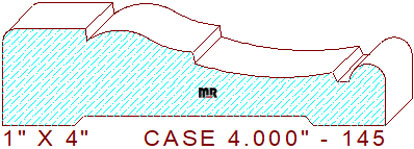

This extravagant 4" - 145 door/window casing measures 4.000" wide by 1.000" thickness, requiring the use of five-quarter lumber for milling on an industrial moulder. The beautiful profile is composed of a 7/8" wide by 1/8" tall raised fillet with a 1/8" rounded outer and a 3/64" eased inner edge on the top left, connected to a short stubby two tangent radius cyma reversa with another 1/8" drop in elevation in the center, attached to a shallow 2-29/32" radius concave semicircle with a 3/32" deep beveled edge, merged with a 1/8" wide sunk fillet and a decorative 3/8" wide half circle on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.710
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
