Door/Window Casing 4" - 133
Door/Window Casing 4" - 133

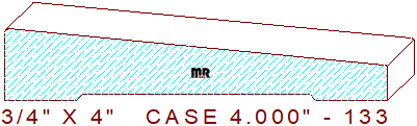

This beveled 4" - 133 door/window casing measures 4.000" wide by .750" thickness, permitting the detail to be machined out of four-quarter lumber. The unpretentious profile is composed of a 3/64" eased edge on the left, connected to a 5.464-degree angled line that transitions the thickness from 3/4" to 3/8" with another 3/64" round-over on the right side of the pattern. The profile is milled with a thicker edge against the machinery inside fence. This enables a reverse pressure shoe to be utilized while keeping the detail snug against that fence. We offer another similar pattern in the same width with a shallower angle for your review and consideration,
door casing 4.000" - 124.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.571
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
