Door/Window Casing 3-3/4" - 6
Door/Window Casing 3-3/4" - 6

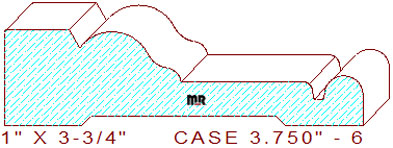

This distinguished 3-3/4" - 6 door/window casing measures 3.750" width by 1.000" thickness, requiring the use of five-quarter lumber for machining on a commercial-grade molder. The custom-designed profile retains a 43/64" wide line with a 1/16" eased outer and a 3/16" deep beveled inside edge on the top left. The sixty-degree chamfer connects to a three tangent radius downsloping wave-like curvature and a 1-3/8" broad fillet with a 7/64" rolled edge in the center, attached to a 7/64" by 3/16" deep sunk fillet and a 13/32" half-circle on the patterns right side.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.750
Depth of Cut: 0.845
Bottom Cutter Head
Width: 3.750
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
