Door/Window Casing 3-3/4" - 29
Door/Window Casing 3-3/4" - 29

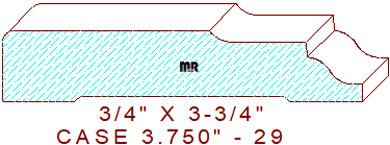

This aesthetically 3-3/4" - 29 attractive door/window casing measures 3.750" wide by .750" thickness, allowing the detail to be machined out of four-quarter lumber. The stylish profile is composed of a 2-5/32" broad straight flat line with a 1/8" eased outer edge on the left, attached to a one-inch wide cong'e derived from a 5/16" concave semicircle in the right center, merged with a 5/32" vertical step and a two tangent radius ogee leaving a 3/16" thickness dimension on the right side of the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.750
Depth of Cut: 0.563
Bottom Cutter Head
Width: 3.750
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
