Door/Window Casing 3-3/4" - 23

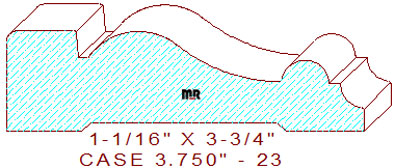

This stylish 3-3/4" - 23 colonial door/window casing measures 3.750" wide by 1.062" thickness, necessitating the use of five-quarter lumber for milling on an industrial moulder. The old world profile is comprised of a 3/4" wide by 9/32" tall raised fillet with a 1/8" eased outer edge on the left, connected to a 3/32" wide sunk fillet that transitions into a two tangent radius cyma reversa in the middle, joined to a 1/2" wide half round bead that merges with a 1/8" wide line segment and a 1/4" cove with a 3/64" eased edge, leaving a 1/4" thickness dimension on the right side of the pattern.
