Door/Window Casing 3-5/8" - 19
Door/Window Casing 3-5/8" - 19

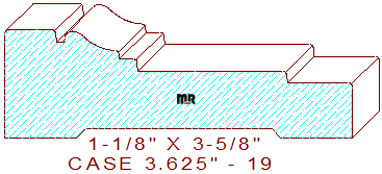

This creative 3-5/8" - 19 door/window casing moulding measures 3.625" width by 1.125" thickness, necessitating a 3-7/8" wide blank of six-quarter lumber for milling on an industrial moulder. The decorative profile contains a 17/32" wide raised fillet with 3/64" eased edges joined to a 5/64" dado on the top left. The minor groove connects to an s-shaped curvature merged with a small step. The drop in elevation attaches to a 1-9/16" broad flat line segment in the center with a 1/8" step joined to a 43/64" flat line with a 3/64" eased edge on the design's right side.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.625
Depth of Cut: 0.752
Bottom Cutter Head
Width: 3.625
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
