Door/Window Casing 3-5/8" - 18
Door/Window Casing 3-5/8" - 18

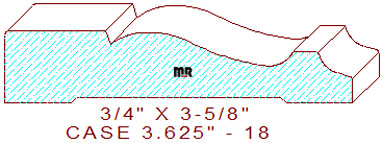

This beautiful door/window casing molding 3-5/8" - 18 measures 3.625" width by .750" thickness, allowing a 3-7/8" wide blank of four-quarter lumber for milling on an industrial molder. The graceful profile contains a 1-7/64" wide raised fillet, a 3/64" rolled outer, and a beveled inside edge on the top left. The short, steep angled line connects to a free-flowing three tangent radii s-shaped curvature in the center. It is attached to a small fillet, and a 9/32" tapered cove with a 3/64" eased edge on the design's right side.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.625
Depth of Cut: 0.667
Bottom Cutter Head
Width: 3.625
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
