Door/Window Casing 3-5/8"

Door/Window Casing 3-5/8"

Door/Window Casing 3-5/8"

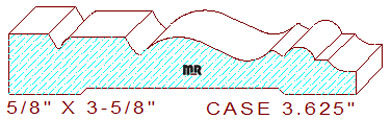

This special 3-5/8" door/window casing measures 3.625" wide by .625" thick. The creative profile is comprised of a 27/64" wide straight line, connected to a radius edge vee groove, attached to a horizontal fillet that transitions into a 15/32" radius arc, joined to a cyma reversa with a chamfered edge, half circle, small fillet, with a 1/4" radius congee positioned on the thin side of the pattern. We also have a matching baseboard for this pattern you may want to consider.

Try utilizing one of our many different sizes backbands on the side edge of this pattern, create a stylish and unique door casing design for your beautiful home or office.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.625
Depth of Cut: 0.392
Bottom Cutter Head
Width: 3.625
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$261.75
$261.75
Total:
$523.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$279.25
$279.25
Total:
$558.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$296.75
$296.75
Total:
$593.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
