Door/Window Casing 3-9/16" - 5
Door/Window Casing 3-9/16" - 5

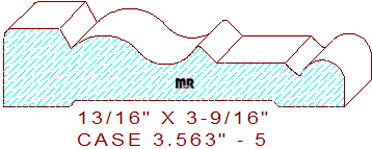

This stylish 3-9/16" - 5 door/window casing measures 3.563" wide by .813" thickness, enabling the detail to be milled out of four-quarter lumber. The beautiful profile is composed of a 45/64" wide area with a 3/32" rounded outer, and a beveled inner edge on the top left. It's joined to an elevation changing two tangent radius cyma reversa with another slightly beveled edge in the center. It attaches to a 23/32" broad flat line segment with a shallow 43/64" radius cove merged with a 15/32" wide half round bead on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.563
Depth of Cut: 0.718
Bottom Cutter Head
Width: 3.563
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
