Door/Window Casing 3-9/16" - 10
Door/Window Casing 3-9/16" - 10

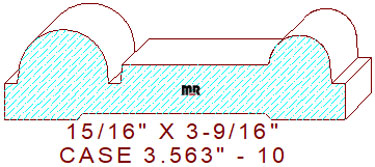

This unique 3-9/16" - 10 door/window casing measures 3.563" wide by .937" thickness, necessitating the use of five-quarter lumber for milling on an industrial moulder. The creative profile is composed of a 9/64" wide line segment and a 61/64" wide half circle on the top left, connected to a 1/8" wide by 13/64" deep sunk fillet merged with a 1-17/32" wide flat line in the center, attached to a 21/32" wide thumbnail shaped bead with a 9/64" flat line leaving a 3/8" thickness dimension on both side edges of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.563
Depth of Cut: 0.563
Bottom Cutter Head
Width: 3.563
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
