Door/Window Casing 3-1/2" - 91
Door/Window Casing 3-1/2" - 91

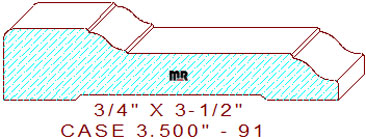

This double ogee 3-1/2" - 91 door/window casing measures 3.500" wide by .750" thickness, enabling the pattern to be machined from four-quarter lumber. The designer profile composes a 57/64" wide by 3/64" tall raised fillet with a 1/8" eased outer edge on the left, connected to two tangent radiuses with a 3/64" rounded edge that transitions the elevation downward 17/64" to a 1-47/64" broad line segment in the center, attached to another 3/64" rounded step and a two tangent radius ogee with a 3/64" eased edge on the right side of the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.718
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
