Door/Window Casing 3-1/2" - 217

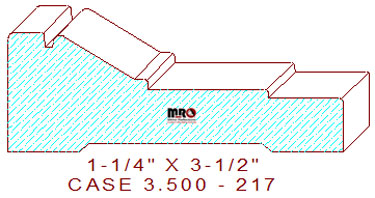

This classical-era 3-1/2" - 217 door/window casing measures 3.500" wide by 1.250" thickness. The stylish pattern composes a 3/8" broad raised fillet with a 1/16" eased outer edge on the top left. The raised section connects to a 5/64" sunk line joined to a 5/64" radius tangent to a downsloping angled line with a horizontal flat and vertical step. It's joined to a 1-1/4" line segment with a 3/32" drop in elevation in the center. The remaining portion contains a 25/32" flat with a 3/64" eased edge leaving a 9/16" thickness on the right edge of the pattern. The recommended rough wood rip size using six-quarter lumber is 3-3/4" wide. We offer hundreds of baseboards that will complement this design; here is one you may want to review and consider, baseboard 5.000" - 125.

Review some of our helpful moulder and knife grinding articles, they will assist you in many aspects of machine set up and knife grinding procedures. These commentaries help you familiarize yourself with the machinery while making your work easier.

The up-to-date combined high-speed steel knives & template prices are listed below for quoting purposes.
