Door/Window Casing 3-1/2" - 207
Door/Window Casing 3-1/2" - 207

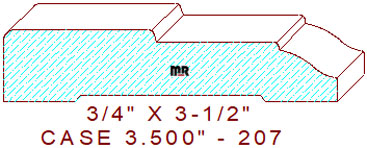

This stylish 3-1/2" - 207 door/window casing measures 3.500" wide by .750" thickness, allowing the detail to be milled from four-quarter lumber. The handsome profile is composed of a 1-9/16" wide by 1/8" tall raised fillet with a 1/8" rounded outer and 1/16" eased inner edge tangent off of a 1/16" beveled line on the top left, attached to a 1-5/16" broad flat area with a 1/16" rounded edge in the center. It's merged with a 5/8" wide ogee derived from a 3/4" radius arc tangent off a 3/8" concave semicircle with a 3/64" eased edge on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.693
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
