Door/Window Casing 3-1/2" - 201
Door/Window Casing 3-1/2" - 201

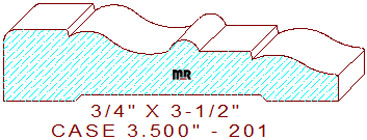

This sumptuous 3-1/2" - 201 door/window casing measures 3.500" width by .750" thickness, necessitating a 3-3/4" wide blank of four-quarter lumber for milling on a commercial molder. The lavish profile contains a 43/64" wide raised fillet with a 1/8" rolled outer edge on the top left. The inside vertical step connects to a graceful two tangent radius s-shaped curvature, merged with a decorative half-round bead and a 9/16" broad fillet with a slight elevation drop in the center. The remaining portion of the pattern consists of a free-flowing two tangent radius ogee with a 3/64" eased edge on the design's right side.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.665
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
