Door/Window Casing 3-1/2" - 161
Door/Window Casing 3-1/2" - 161

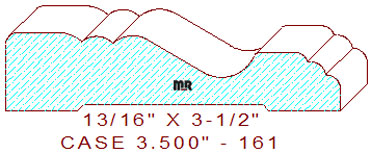

This elegant 3-1/2" - 161 door/window casing measures 3.500" wide by .812" thick. The fashionable profile comprises a 25/32" wide double eased edge fillet consisting of a 1/8" radius on the outer edge and a 3/8" radius on the opposite side. It's connected to a shallow half-round bead that transitions into a deep-sloping cyma reversa, joined to a 7/16" wide raised fillet with three cascading quarter-round circles positioned on the thin side of the pattern. We have a few other similar profiles you may want to review and consider,
door casing 3.500" - 40, window casing 3.500" - 172, and
door/window casing 3.500" - 182.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.721
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
