Door/Window Casing 3-1/2" - 151
Door/Window Casing 3-1/2" - 151

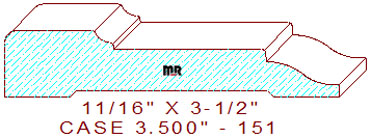

This stylish 3-1/2" - 151 door/window casing measures 3.500" width by .750" thickness, requiring a 3-3/4" wide blank of four-quarter lumber for milling on an industrial moulder. The enchanting profile contains a 15/16" broad line with a 1/8" round outer edge and a 3/16" cove with a 1/16" vertical step on the top left. The small steep drop connects to a 1-19/32" broad flat segment with a 1/8" elevation change. It's attached to a graceful 5/8" convex arc tangent to a 1/2" radius semicircle creating the ogee on the design's right edge.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.562
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
