Door/Window Casing 3-1/2" - 150

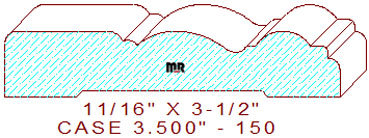

This attractive 3-1/2" - 150 door/window casing measures 3.500" wide by .687" thickness, authorizing the pattern to be machined out of four-quarter lumber. The attractive profile comprises a 1-15/64" wide raised fillet with a 1/8" eased outer. A 3/16" rounded inner edge on the top left, connected to a small quarter round bead the joins to a two tangent radius s-shaped curvature in the center. This area is attached to a 37/64" wide convex semicircular arc flanked by flat line segments with rounded edges, joined to a 1/8" vertical step with a 1/8" round-over on the design's right edge.
