Door/Window Casing 3-1/2" - 114
Door/Window Casing 3-1/2" - 114

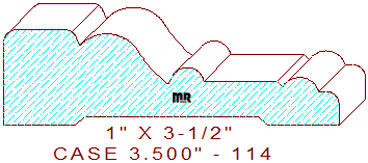

This distinguished 3-1/2" - 114 door/window casing measures 3.500" wide by one-inch thickness, requiring five-quarter lumber for milling in on an industrial moulder. The graceful profile composes a 3/4" wide by 11/64" tall raised fillet with 1/8" eased corners on the top left. Attached to a 15/16" wide down-sloping two tangent radius cyma reversa with a 3/8" wide thumbnail-shaped bead in the center, joined to a 49/64" broad flat line segment with a 1/16" beveled edge, merged with a 3/8" wide half-circle and a 7/32" wide fillet with a 1/8" rounded edge on the right side of the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.906
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
