Door/Window Casing 3-7/16" - 11
Door/Window Casing 3-7/16" - 11

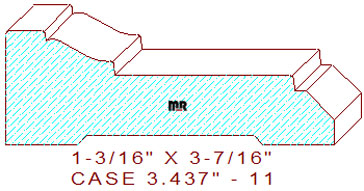

This modern 3-7/16" - 11 door/window casing measures 3.437" wide by 1.187" thickness, necessitating the use of six-quarter lumber for milling on an industrial moulder. The classy profile is composed of a 27/64" wide by 7/64" tall raised fillet with 3/64" rounded edges on the top left, connected to a down-sloping two tangent radius ogee with a 5/32" vertical step perpendicular to a 1-7/8" broad line segment in the center, attached to a 1/8" wide by 5/32" deep notch with a 5/16" wide forty-five-degree chamfer on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.437
Depth of Cut: 1.000
Bottom Cutter Head
Width: 3.437
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
