Door/Window Casing 3-3/8" - 21
Door/Window Casing 3-3/8" - 21

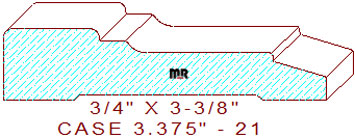

This fancy 3-3/8" - 21 door/window casing measures 3.375" wide by .750" thickness, enabling the detail to be milled out of four-quarter lumber. The attractive profile is composed of a one-inch wide raised fillet with 3/32" eased edges on the left, connected to a 9/32" broad line segment that joins to a 1-9/16" wide congee derived from a 1/4" cove in the center, attached to a 3/32" vertical step and a 5.945-degree chamfer with a 3/64" rounded edge on the right side of the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.375
Depth of Cut: 0.686
Bottom Cutter Head
Width: 3.375
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
