Door/Window Casing 3-1/4" - 90
Door/Window Casing 3-1/4" - 90

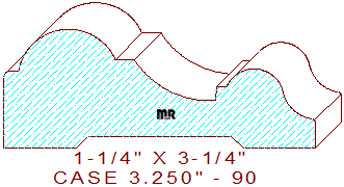

This stunning 3-1/4" - 90 door casing measures 3.250" wide by 1.250" thickness, necessitating the use of six-quarter lumber for milling on an industrial moulder. The lavish profile is composed of a 5/32" wide fillet with a 1/16" rounded edge at a 13/16" thickness dimension on the top left, connected to a 1-1/64" wide thumbnail shaped bead and a 13/64" wide line that transition into a 15/16" radius cove in the center, joined to a 9/64" tall by 1/8" wide slightly obtuse upward step, merged with a graceful two tangent radius cyma reversa with a 3/64" eased edge leaving a 5/16" thickness dimension on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.250
Depth of Cut: 1.125
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
