Door/Window Casing 3-1/4" - 67
Door/Window Casing 3-1/4" - 67

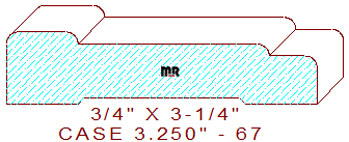

This attractive 3-1/4" - 67 door/window casing moulding measures 3.250" width by .750" thickness, necessitating a 3-1/2" wide blank of four-quarter lumber for milling on an industrial moulder. The tiered profile contains a 3/4' wide by 1/8" tall raised fillet with 1/8" rolled edges on the top left. The center contains a two-inch broad flat line with a 1/8" radius to transition to a 1/2" wide section with an additional 1/8" rounded edge on the design's right side. We offer a few alternative larger profiles for your review and consideration,
door casing 3.500" - 47 and
window casing 4.000" - 51.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.250
Depth of Cut: 0.531
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
