Door/Window Casing 3-1/4" - 61
Door/Window Casing 3-1/4" - 61

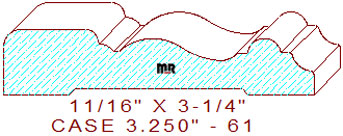

This fascinating 3-1/4" - 61 door/window casing measures 3.250" width by .687" thickness, allowing the use of four-quarter lumber for milling on an industrial-grade molder. The stylishly creative profile contains a one-inch broad flat line segment with two 1/8" rolled edges on the top left. The center consists of a 3/16" quarter round convex arc, joined to a 3/64" sunk fillet and a graceful three tangent radius s-shaped curvature. This section merges with a small half-round bead flanked by horizontal segments and a 7/32" cove with 3/64" eased edges leaving a 1/4" thickness dimension on the right corner of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.250
Depth of Cut: 0.593
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
