Door/Window Casing 3-1/4" - 50
Door/Window Casing 3-1/4" - 50

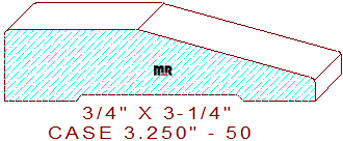

This beveled 3-1/4 - 50 door/window casing measures 3.250" wide by .750" thickness, necessitating the use of a 3-1/2" wide blank of four-quarter lumber for milling on a commercial moulder. The chamfered edge profile contains a 1-3/8" broad line with 1/16" rolled edges on the top left. The inside rollover connects to a 15.422-degree downsloping angled line with a 1/16" eased edge leaving a 1/4" thickness dimension on the design's right side. We offer many baseboard patterns to complement this design; here's one you may want to review and consider,
baseboard 6.000" - 204.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.250
Depth of Cut: 0.716
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
