Door/Window Casing 3-1/4" - 126
Door/Window Casing 3-1/4" - 126

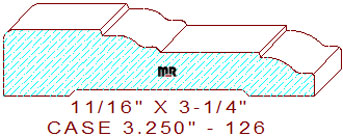

The stylish 3-1/4" - 126 door/window casing measures 3.250" wide by .687" thickness, assuring the pattern can be machined out of four-quarter lumber. The graceful profile is composed of a 1-1/64" broad flat line with a 7/64" rounded outer, and a 1/16" slightly beveled inner edge on the top left, connected to a down-sloping wave like s-curves that join to a 1-1/32" broad flat line with a 1/16" vertical step in the center, merged with a two tangent radius ogee with a 3/64" eased edge leaving a 15/64" thickness dimension on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.250
Depth of Cut: 0.650
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
