Door/Window Casing 3-1/4" - 124
Door/Window Casing 3-1/4" - 124

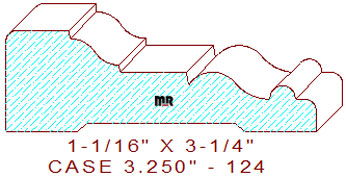

This exquisite 3-1/4" - 124 door/window casing measures 3.250" wide by 1.062" thickness, enabling the detail to be milled from five-quarter lumber. The stunning profile is composed of a 21/32" broad line segment with a 1/8" eased outer edge on the left side, connected to a two tangent radius ogee flanked by elevation changing vertical lines. Joined to a 47/64" wide by 1/8" deep step in the middle, attached to a two tangent radius cyma reversa with a 17/64" wide half round bead and a 7/32" broad horizontal line with a 1/8" rounded edge on the right side of the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.250
Depth of Cut: 0.976
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
