Door/Window Casing 3-1/4" - 103
Door/Window Casing 3-1/4" - 103

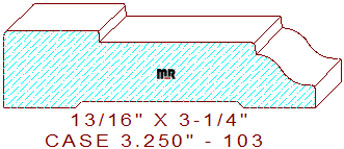

This distinctive 3-1/4" - 103 door/window casing measures 3.250" wide by .812" thickness. The stepped profile comprises a 1" wide by 1/8" tall raised fillet with a 1/16" eased edge connected to a 1-5/8" wide by 1/8" deep stepped lines. Joined to two tangent 21/64" radius arcs forming the ogee, leaving a 1/4" thickness dimension on the thin side of the design. We offer a similar 3-1/2" version of this pattern for your review and consideration,
door/window casing 3.500" - 123. We offer many baseboards that will compliment this pattern; here is one option you may want to review,
baseboard 7.000" - 40.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.250
Depth of Cut: 0.770
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
