Door/Window Casing 3-1/8" - 9
Door/Window Casing 3-1/8" - 9

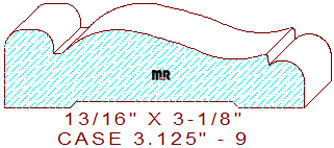

This creative 3-1/8" - 9 door/window casing measures 3.125" wide by .812" thickness, permitting the pattern to be machined out of four-quarter lumber. The stylish profile is composed of a 33/64" wide by 1/4" tall raised fillet with 3/16" rolled edges on the top left, connected to a 5/64" wide sunk fillet that merges with a gentle free-flowing three tangent radius wave-like design in the center, attached to a 9/64" vertical drop in elevation with a 3/8" wide half round bead on the design's right side.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.125
Depth of Cut: 0.703
Bottom Cutter Head
Width: 3.125
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
