Door/Window Casing 3-1/8" - 11
Door/Window Casing 3-1/8" - 11

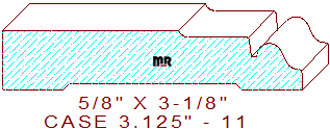

This decorative 3-1/8" - 11 door/window casing measures 3.125" wide by .625" thickness, permitting the detail to be machined out of four-quarter lumber. The interchangeable profile is designed to be used with one of our many backband details. You may want to review and consider this detail,
backband 1.250" - 2. The pattern is comprised of a 1-27/32" wide straight line on the top left, connected to a 3/4" wide cong'e derived from a 7/64" cove in the center, attached to a 1/16" wide by 13/64" deep sunk fillet merged with a two tangent radius cyma reversa with a 3/64" eased edge on the right side of the design.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.125
Depth of Cut: 0.602
Bottom Cutter Head
Width: 3.125
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
