Door/Window Casing 3" - 90
Door/Window Casing 3" - 90

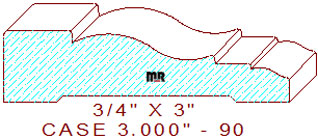

This decorative 3" - 90 door/window casing measures 3.000" wide by .750" thickness, enabling the pattern to be machined out of four-quarter lumber. The gorgeous profile is comprised of a 23/32" wide line segment with a 1/16" eased outer edge and a 1/8" vertical step on the left, attached to a 13/16" radius arc tangent off of a 5/8" concave semicircle forming the cyma reversa in the center with another 1/8" drop in elevation, joined to a 3/8" wide line segment with a 1/16" step and a small ogee with a 3/64" eased edge on the right side of the pattern. We have another alternative detail with similar geometrical characteristics for your review and consideration,
door/window casing 3.000" - 41.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.000
Depth of Cut: 0.690
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
