Door/Window Casing 3" - 83
Door/Window Casing 3" - 83

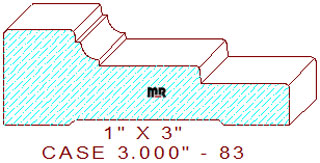

This lovely 3" - 83 stepped door casing measures 3.000" wide by 1.000" thickness, it will require five quarter lumber for milling on a industrial moulder. The tiered profile composes a 3/4" wide by 1/8" tall raised fillet with 1/16" eased edges on the left, connected to a 1/16" wide line segment with a 3/16" cove and a 1/16" drop in elevation, joined to a 1-1/16" wide by 3/16" deep stepped line with a 1/16" rounded edge that joins to a 15/16" wide straight line with a 1/16" radius edge, leaving a 7/16" thickness dimension on the right hand side of the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.000
Depth of Cut: 0.781
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
